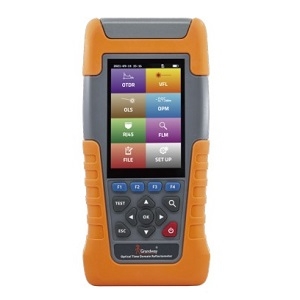

FHO1000

Optical Time Domain Reflectometer (OTDR) by Grandway Telecom
28 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Grandway Telecom.

The FHO1000 from Grandway Telecom is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone <1 m, Attenuation Dead Zone <4 m, Optical Wavelength 1310 to 1550 nm, Dynamic Range 26 to 28 dB, Pulse Width 3 ns to 20 µs. More details for FHO1000 can be seen below.

Product Specifications

Product Details

  • Part Number
    FHO1000
  • Manufacturer
    Grandway Telecom
  • Description
    1310 to 1550 nm Wavelength 26 to 28 dB Dynamic Range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    0 to 85%
  • Operating Temperature
    -10 to 50 Degree C

Connections & Interface

  • Interface
    RJ45, USB
  • Optical Connector
    SC, FC, SC
  • Wireless Interface
    Bluetooth

General Parameters

  • Equipment Type
    Handheld
  • Event Dead Zone
    <1 m
  • Attenuation Dead Zone
    <4 m
  • Optical Wavelength
    1310 to 1550 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    5000 mAh
  • Data Storage
    Pluggable 8 GB micro SD card
  • Distance Accuracy
    ±(1m + test distance x 3 x 10-5 + 0.05 m to 1 km
  • Fiber Type
    Single Mode
  • IOR Setting
    1.000 to 1.999 (Refractive index)
  • Linearity
    0.1 dB
  • Dynamic Range
    26 to 28 dB
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 ns to 20 µs
  • Operation Mode
    CW
  • Distance Range
    1 to 120 km (Test Range)
  • Output Power
    -12 dBm
  • Test Range
    -70 to 10 dBm
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    64000 points
  • Sampling Resolution
    0.05 m to 1 km
  • VFL Output Power
    10 mW
  • VFL(Launching Mode)
    CW/1Hz/2Hz
  • Wavelength accuracy
    ±20 nm

Physical Properties

  • Dimension
    192.9 x 93.8 x 47 mm (L x W x H)
  • Weight
    0.57 kg
