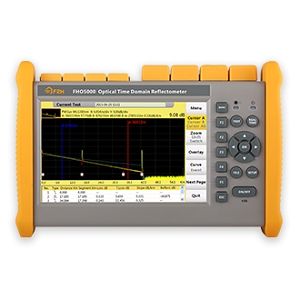

FHO5000-MD22

Optical Time Domain Reflectometer (OTDR) by Grandway Telecom

Note: Your Quotation Request will be directed to Grandway Telecom.

The FHO5000-MD22 from Grandway Telecom is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone MM: 1.5 m, SM: 1.75 m, Attenuation Dead Zone MM: 8 m, SM: 11 m, Optical Wavelength 850 to 1550 nm, Dynamic Range 19 to 40 dB, Pulse Width 3 ns to 20 µs. More details for FHO5000-MD22 can be seen below.

Product Specifications

Product Details

  • Part Number
    FHO5000-MD22
  • Manufacturer
    Grandway Telecom
  • Description
    850 to 1550 nm Wavelength 19 to 40 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Temperature
    -18 to 35 Degree C
  • Storage Temperature
    -18 to 35 Degree C

Connections & Interface

  • Interface
    USB 1.1, USB 2.0
  • Optical Connector
    SC, FC

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • Event Dead Zone
    MM: 1.5 m, SM: 1.75 m
  • Attenuation Dead Zone
    MM: 8 m, SM: 11 m
  • Optical Wavelength
    850 to 1550 nm
  • Battery Body Material
    Lithium
  • Battery Capacity
    7.4 V / 4.4 Ah
  • Display
    7 Inch TFT-LCD
  • Display Resolution
    0.01 dB
  • Distance Accuracy
    ±(1m + test distance x 3 x 10-5 + 0.25 m
  • Distance Resolution
    0.01 m
  • Fiber Type
    Single Mode, Multi Mode
  • Laser Safety
    Class III B
  • Linearity
    <0.05 dB
  • Dynamic Range
    19 to 40 dB
  • Loss Resolution
    0.001 dB
  • Loss Threshold
    0.01 dB
  • Modulation
    2 Hz
  • Pulse Width
    3 ns to 20 µs
  • Accuracy
    ±0.35 dB ±1 nW
  • Operation Mode
    CW
  • Distance Range
    100 m to 240 km
  • Operating Current
    4 A
  • Output Power
    10 mW
  • Test Range
    -50 to 10 dBm
  • Sampling Point
    128000 points
  • Sampling Resolution
    0.25 m
  • DC Voltage
    9 to 12 VDC
  • VFL Output Power
    10 mW
  • VFL(Launching Mode)
    CW/2Hz

Physical Properties

  • Dimension
    235 x 95 x 30 mm
  • Weight
    150 g
