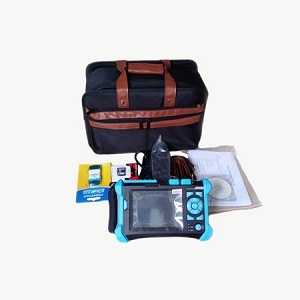

TE800

Optical Time Domain Reflectometer (OTDR) by Shenzhen Teco Optic Co., Ltd.

Note: Your Quotation Request will be directed to Shenzhen Teco Optic Co., Ltd..

The TE800 from Shenzhen Teco Optic Co., Ltd. is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone <2 m, Optical Wavelength 850 to 1625 nm, Dynamic Range 36 to 38 dB, Pulse Width 10 to 1024 ns, Distance Range 4 to 256 km. More details for TE800 can be seen below.

Product Specifications

Product Details

  • Part Number
    TE800
  • Manufacturer
    Shenzhen Teco Optic Co., Ltd.
  • Description
    850 to 1625 nm Wavelength Range 36 to 38 dB Dynamic Range Single Mode, Multi Mode OTDR

Connections & Interface

  • Interface
    USB, SD Card

General Parameters

  • Event Dead Zone
    <2 m
  • Optical Wavelength
    850 to 1625 nm
  • Battery Body Material
    Lithium
  • Display
    6.5 inch TFT-LCD (touch screen), 640 x 480
  • Fiber Type
    Single Mode, Multi Mode
  • Battery working and charging time
    8 Hr (Operating)
  • Dynamic Range
    36 to 38 dB
  • Memory Capacity
    >800 traces
  • Pulse Width
    10 to 1024 ns
  • Distance Range
    4 to 256 km
  • Pixel Resolution
    640 x 480 pixels
  • Warranty
    12 Months
  • Wavelength accuracy
    ±20 nm
