TFP2A

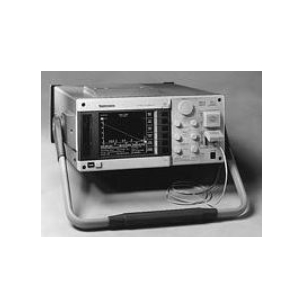

Optical Time Domain Reflectometer (OTDR) by Tektronix
12 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Tektronix.

The TFP2A from Tektronix is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 0.2 to 25 m, Attenuation Dead Zone 2.5 to 170 m, Optical Wavelength 850 to 1550 nm, Dynamic Range 26 to 37.5 dB, DC Voltage 10 to 16 VDC. More details for TFP2A can be seen below.

Product Specifications

Product Details

  • Part Number
    TFP2A
  • Manufacturer
    Tektronix
  • Description
    850 to 1550 nm Wavelength Range 26 to 37.5 dB Dynamic Range Single Mode, Multi Mode OTDR

Environmental Conditions

  • Operating Humidity
    5 to 90%
  • Operating Temperature
    -10 to 55 Degree C
  • Storage Temperature
    -40 to 60 Degree C

General Parameters

  • Event Dead Zone
    0.2 to 25 m
  • Attenuation Dead Zone
    2.5 to 170 m
  • Optical Wavelength
    850 to 1550 nm
  • Display
    Color 16.5 cm (6.5 in.) diagonal
  • Distance Accuracy
    ±0.001% + minimum cursor resolution, ± uncertainty in IR
  • Fiber Type
    Single Mode, Multi Mode
  • IOR Setting
    1.4000 to 1.6000
  • Dynamic Range
    26 to 37.5 dB
  • Power Supply
    90 to 253 VAC, 47 to 440 Hz
  • DC Voltage
    10 to 16 VDC

Applications

  • Application
    Installation and Acceptance Testing of Fiber-Optic Networks, Fiber-Optic System Maintenance Testing, Locating Optical-Cable Faults During Restoration, Optical System Documentation

Physical Properties

  • Dimension
    60.7 x 45.2 x 19.8 cm (L x W x H)
  • Weight
    15 kg
