YSU1625

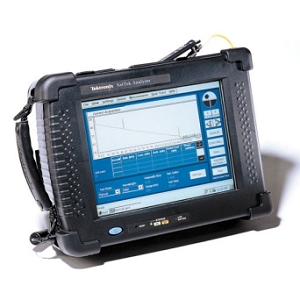

Optical Time Domain Reflectometer (OTDR) by Tektronix
12 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Tektronix.

The YSU1625 from Tektronix is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 2 m, Attenuation Dead Zone 8 m, Optical Wavelength 1625 nm, Dynamic Range 44 dB, Pulse Width 2 to 20 µs. More details for YSU1625 can be seen below.

Product Specifications

Product Details

  • Part Number
    YSU1625
  • Manufacturer
    Tektronix
  • Description
    1625 nm Wavelength Range 44 dB Dynamic Range Single Mode OTDR

Environmental Conditions

  • Operating Humidity
    5 to 95 %
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 60 Degree C

Connections & Interface

  • Interface
    LAN, Modem, PCMCIA

General Parameters

  • Event Dead Zone
    2 m
  • Attenuation Dead Zone
    8 m
  • Optical Wavelength
    1625 nm
  • Fiber Type
    Single Mode
  • Laser Safety
    Class 1
  • Dynamic Range
    44 dB
  • Loss Accuracy
    0.02 dB
  • Loss Threshold
    0.01 to 10 dB
  • Pulse Width
    2 to 20 µs
  • Distance Range
    0 to 320 km
  • Reflectance Accuracy
    ±2 dB
  • Warranty
    12 Months
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Installation and Acceptance Testing of Fiber Optic Networks, Fiber Optic System Maintenance Testing, Locating Optical Cable Faults During Restoration, Optical System Documentation

Physical Properties

  • Dimension
    249 x 330 x 89 mm (H x W x D)
  • Weight
    4.11 kg
