4100 Series

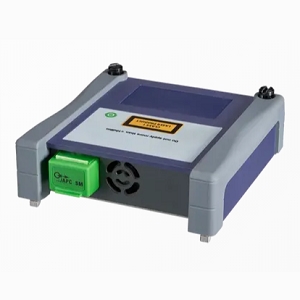

Optical Time Domain Reflectometer (OTDR) by Viavi Solutions Inc.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Viavi Solutions Inc..

The 4100 Series from Viavi Solutions Inc. is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 0.65 m, Attenuation Dead Zone 2.5 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 36 to 45 dB, Pulse Width 3 ns to 20 µs. More details for 4100 Series can be seen below.

Product Specifications

Product Details

  • Part Number
    4100 Series
  • Manufacturer
    Viavi Solutions Inc.
  • Description
    1310 to 1650 nm Wavelength Range 36 to 45 dB Dynamic Range Single Mode OTDR

Connections & Interface

  • Interface
    Ethernet
  • Optical Connector
    FC, SC, LC

General Parameters

  • Event Dead Zone
    0.65 m
  • Attenuation Dead Zone
    2.5 m
  • Optical Wavelength
    1310 to 1650 nm
  • Display Resolution
    0.001 dB (Attenuation), 0.01 dB (Reflectance)
  • Distance Accuracy
    ±(0.5 m + sampling resolution +0.001% x distance)
  • Fiber Type
    Single Mode
  • IOR Setting
    1.30000 to 1.70000
  • Laser Safety
    Class 1
  • Linearity
    ±0.03 dB
  • Dynamic Range
    36 to 45 dB
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 ns to 20 µs
  • Accuracy
    ±0.5 dB
  • Operation Mode
    CW
  • Distance Range
    0.1 to 400 km
  • Output Power
    -3.5 dBm
  • Output Stability
    <±0.1 dB
  • Power Range
    -55 to -3 dBm
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    4 cm
  • Wavelength accuracy
    ±20 nm

Physical Properties

  • Weight
    0.35 kg
