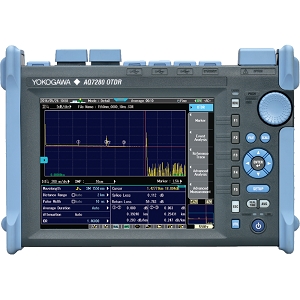

AQ2781V

Optical Time Domain Reflectometer (OTDR) by Yokogawa Test & Measurement Corporation
32 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Yokogawa Test & Measurement Corporation.

The AQ2781V from Yokogawa Test & Measurement Corporation is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 30 seconds to 3 minutes. More details for AQ2781V can be seen below.

Product Specifications

Product Details

  • Part Number
    AQ2781V
  • Manufacturer
    Yokogawa Test & Measurement Corporation
  • Description
    Single Mode Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    0 to 90%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Connections & Interface

  • Interface
    USB 2.0, Ethernet
  • Optical Connector
    SC, FC

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    30 seconds to 3 minutes
  • Battery Body Material
    Li-ion
  • Data Storage
    >1000 waveforms (Internal), USB, SD (External)
  • Display
    8.4-inch color TFT LCD (Resolution: 800 x 600, Multi-touch capacitive touchscreen)
  • Distance Accuracy
    ±(0.75 m + measurement distance x 2 x 10-5 + 2 cm)
  • Fiber Type
    Single Mode
  • Battery working and charging time
    15 Hr (Operating), 6 Hr (Charging)
  • Laser Safety
    Class 3R
  • Memory Capacity
    >1000 Waveforms
  • Modulation
    270 Hz to 2 kHz
  • Operation Mode
    CW
  • Power Range
    -50 to 24 dBm (CW), -50 to 24 dBm (CHOP)
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Sampling Point
    256000 points
  • Sampling Resolution
    2 cm
  • Warranty
    3 Years

Applications

  • Application
    Structured Cable Testing, Cable Manufacturing, And Network Installation And Maintenance

Physical Properties

  • Dimension
    47 x 87 x 29 mm (W x H x D)
  • Weight
    140 g
