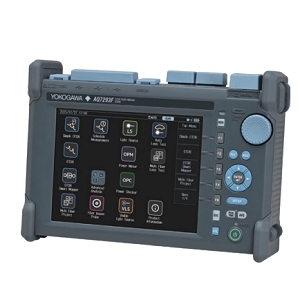

AQ7293F

Optical Time Domain Reflectometer (OTDR) by Yokogawa Test & Measurement Corporation
32 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Yokogawa Test & Measurement Corporation.

The AQ7293F from Yokogawa Test & Measurement Corporation is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 3 minutes, Event Dead Zone 0.5 m, Attenuation Dead Zone 2.5 to 3.5 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 40 to 43 dB. More details for AQ7293F can be seen below.

Product Specifications

Product Details

  • Part Number
    AQ7293F
  • Manufacturer
    Yokogawa Test & Measurement Corporation
  • Description
    1310 to 1650 nm Wavelength 40 to 43 dB Dynamic Range All-in-one OTDR

Environmental Conditions

  • Operating Humidity
    <95% RH
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Connections & Interface

  • Interface
    USB 2.0, Ethernet, microSD
  • Optical Connector
    SC, FC, SC/APC

General Parameters

  • Equipment Type
    Benchtop
  • OTDR Measurement Time
    3 minutes
  • Event Dead Zone
    0.5 m
  • Attenuation Dead Zone
    2.5 to 3.5 m
  • Optical Wavelength
    1310 to 1650 nm
  • Battery Body Material
    Lithium-ion
  • Data Storage
    1 GB (Internal), USB (External)
  • Dead zone
    30 to 40 m (PON)
  • Display
    8.4-inch color TFT LCD (Resolution: 800 × 600, Multi-touch capacitive touchscreen)
  • Fiber Type
    Single Mode
  • Battery working and charging time
    15 Hr (Operating), 6 Hr (Charging)
  • Dynamic Range
    40 to 43 dB
  • Loss Accuracy
    ±0.03 dB
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 to 20000 ns
  • Operation Mode
    CW, Pulsed
  • Distance Range
    0.1 to 512 km
  • Operating Current
    3 A
  • Output Power
    <15 dBm
  • Output Stability
    ±0.05 to ±0.15 dB
  • Return Loss
    >55 dB
  • Sampling Point
    256000 points
  • Sampling Resolution
    2 cm
  • Warranty
    3 Years
  • DC Voltage
    15 VDC
  • Warm up time
    5 to 30 min
  • Wavelength accuracy
    ±5 nm, ±20 nm

Physical Properties

  • Dimension
    287 x 210 x 80 mm (W x H x D)
  • Weight
    2.6 kg
