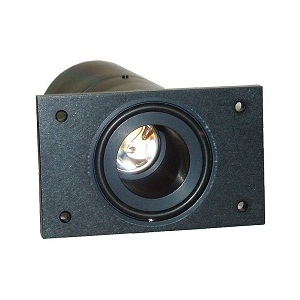

DH_IGA-EX_TE Photodiode (900-1900/2550nm)

Photodetector by Bentham Instruments
Request Quote

Note: Your Quotation Request will be directed to Bentham Instruments.

The DH_IGA-EX_TE Photodiode (900-1900/2550nm) from Bentham Instruments is a Photodetector with Wavelength Range 800 to 1700 nm, Active Area Diameter 3 mm, Dark Current 0.001 nA, Responsivity/Photosensitivity 1.07 A/W. More details for DH_IGA-EX_TE Photodiode (900-1900/2550nm) can be seen below.

Product Specifications

Product Details

  • Part Number
    DH_IGA-EX_TE Photodiode (900-1900/2550nm)
  • Manufacturer
    Bentham Instruments
  • Description
    800 to 1700 nm Near-IR, Infrared Module with Connector InGaAs Photodetector

General Parameters

  • Photodetector Material
    Indium Gallium Arsenide (InGaAs)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Near-IR, Infrared
  • Wavelength Range
    800 to 1700 nm
  • Active Area
    3 x 3 mm
  • Photodetector Type
    PN
  • Channels
    Single
  • Configuration
    Single
  • Active Area Diameter
    3 mm
  • Module
    Yes
  • Package
    Module with Connector
  • Dark Current
    0.001 nA
  • Responsivity/Photosensitivity
    1.07 A/W
