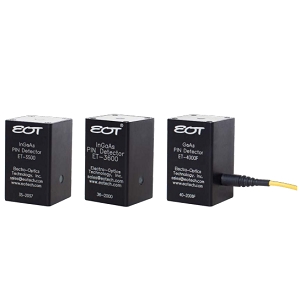

120-10058- 0001 (ET-3500)

Photodetector by Coherent Corp.
15 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The 120-10058- 0001 (ET-3500) from Coherent Corp. is a Photodetector with Wavelength Range 1300 nm, Supply Voltage 6 VDC, Rise Time <25 ps, Bandwidth >15 GHz, Active Area Diameter 32 µm. More details for 120-10058- 0001 (ET-3500) can be seen below.

Product Specifications

Product Details

  • Part Number
    120-10058- 0001 (ET-3500)
  • Manufacturer
    Coherent Corp.
  • Description
    1300 nm Infrared Module with Connector InGaAs Photodetector

General Parameters

  • Photodetector Material
    Indium Gallium Arsenide (InGaAs)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Infrared
  • Wavelength Range
    1300 nm
  • Photodetector Type
    PIN
  • Supply Voltage
    6 VDC
  • Rise Time
    <25 ps
  • Bandwidth
    >15 GHz
  • Active Area Diameter
    32 µm
  • Fall Time
    <25 ps
  • Impedance
    50 Ohms
  • Noise equivalent power(NEP)
    20 pW/vHz
  • Package
    Module with Connector
  • Rise Fall Time
    <25 ps
  • Dark Current
    <3 nA
  • Responsivity/Photosensitivity
    0.9 A/W
  • Note
    Maximum Linear Rating CW: 10 mW

Applications

  • Application
    Monitoring, High Frequency Heterodyne Applications, Time Domain and Frequency Response Measurements

Connections & Interface

  • RF Connector
    SMA
