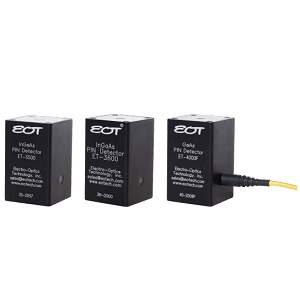

120-10071- 0001 (ET-4000)

Photodetector by Coherent Corp.

Note: Your Quotation Request will be directed to Coherent Corp..

The 120-10071- 0001 (ET-4000) from Coherent Corp. is a Photodetector with Wavelength Range 830 nm, Supply Voltage 3 VDC, Rise Time <30 ps, Bandwidth >12.5 GHz, Active Area Diameter 60 µm. More details for 120-10071- 0001 (ET-4000) can be seen below.

Product Specifications

Product Details

  • Part Number
    120-10071- 0001 (ET-4000)
  • Manufacturer
    Coherent Corp.
  • Description
    830 nm Near-IR Module with Connector GaAs Photodetector

General Parameters

  • Photodetector Material
    Gallium Arsenide (GaAs)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Near-IR
  • Wavelength Range
    830 nm
  • Photodetector Type
    PIN
  • Supply Voltage
    3 VDC
  • Rise Time
    <30 ps
  • Bandwidth
    >12.5 GHz
  • Active Area Diameter
    60 µm
  • Fall Time
    <30 ps
  • Impedance
    50 Ohms
  • Noise equivalent power(NEP)
    35 pW/vHz
  • Package
    Module with Connector
  • Rise Fall Time
    <30 ps
  • Dark Current
    <0.5 nA
  • Responsivity/Photosensitivity
    0.53 A/W
  • Note
    Maximum Linear Rating CW: 10 mW

Applications

  • Application
    Monitoring, High Frequency Heterodyne Applications, Time Domain and Frequency Response Measurements

Connections & Interface

  • RF Connector
    SMA
