C12702-03

Photodetector by Hamamatsu Photonics
40 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

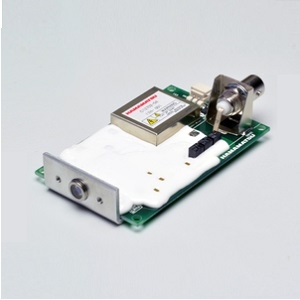

The C12702-03 from Hamamatsu Photonics is a Photodetector with Wavelength Range 400 to 1000 nm, Supply Voltage 4.75 to 5.25 V, Bandwidth 4 kHz to 100 MHz, Active Area Diameter 1 mm (Photosensitive), Responsivity/Photosensitivity 0.5 A/W. More details for C12702-03 can be seen below.

Product Specifications

Product Details

  • Part Number
    C12702-03
  • Manufacturer
    Hamamatsu Photonics
  • Description
    400 to 1000 nm Avalanche Photodetector with PCB Package

General Parameters

  • Photodetector Material
    Silicon (Si)
  • Operation Mode
    Photovoltaic
  • Package Type
    PCB
  • Spectral Band
    Visible
  • Wavelength Range
    400 to 1000 nm
  • Photodetector Type
    Avalanche
  • Supply Voltage
    4.75 to 5.25 V
  • Bandwidth
    4 kHz to 100 MHz
  • Active Area Diameter
    1 mm (Photosensitive)
  • Voltage Responsivity
    -7.1 to -6.4 V/W
  • Impedance
    50 Ohms
  • Cut-Off Frequency
    90 to 100 MHz (High band), 3 to 4 kHz (Low band)
  • Noise equivalent power(NEP)
    0.3 to 0.6 pW/Hz1/2
  • Package
    PCB
  • Responsivity/Photosensitivity
    0.5 A/W
  • Note
    Current consumption: 50 to 80 mA

Environmental Conditions

  • Operating Temperature
    0 to 60 Degree C
  • Storage Temperature
    -20 to 70 Degree C

Physical Properties

  • Weight
    37 g
  • Dimensions
    80 x 50 x 22 mm

Applications

  • Application
    APD evaluation, Spatial light transmission, Bar code readers, Laser radars, Optical rangefinders, Optical communications

Connections & Interface

  • Fiber optic connector
    FC/APC
  • RF Connector
    SMA
