JIC219

Photodetector by ifw optronics
52 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ifw optronics.

The JIC219 from ifw optronics is a Photodetector with Wavelength Range 222 to 392 nm, Supply Voltage 2.7 to 5 V, Rise Time 1100 µs, Bandwidth 0.3 kHz. More details for JIC219 can be seen below.

Product Specifications

Product Details

  • Part Number
    JIC219
  • Manufacturer
    ifw optronics
  • Description

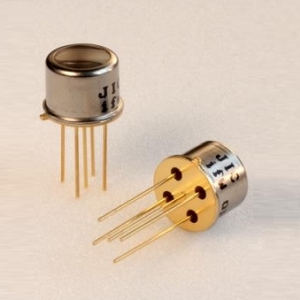

    SiC-Photodiode 0.1 mm² with Voltage-Output TO-Can Package

General Parameters

  • Photodetector Material
    Silicon Carbide (SiC)
  • Operation Mode
    Photovoltaic
  • Package Type
    TO-Can
  • Spectral Band
    Ultraviolet
  • Wavelength Range
    222 to 392 nm
  • Active Area
    0.1 mm2
  • Supply Voltage
    2.7 to 5 V
  • Rise Time
    1100 µs
  • Bandwidth
    0.3 kHz
  • Voltage Responsivity
    190 mV/nW
  • Module
    No
  • Output Voltage
    Up to 5 V
  • Package
    TO-5
  • Rise Fall Time
    1100 µs (Rise)
  • RoHS
    Yes
  • Short Circuit Current
    ± 50 mA
  • Supply Current
    750 to 1100 µA
  • Note
    Saturation voltage: 4.8 to 4.95 V

Environmental Conditions

  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Optical measurements in UV-range, control of sterilization lamps, flame control
