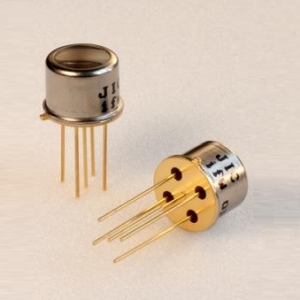

JIC227

Photodetector by ifw optronics
52 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ifw optronics.

The JIC227 from ifw optronics is a Photodetector with Wavelength Range 210 to 355 nm, Supply Voltage 2.7 to 5.25 V, Rise Time 30 µs, Bandwidth 10 kHz. More details for JIC227 can be seen below.

Product Specifications

Product Details

  • Part Number
    JIC227
  • Manufacturer
    ifw optronics
  • Description
    SiC-Photodiode 0.1 mm² with Voltage-Output 30 µs Rise time

General Parameters

  • Photodetector Material
    Silicon Carbide (SiC)
  • Operation Mode
    Photovoltaic
  • Package Type
    TO-Can
  • Spectral Band
    Ultraviolet
  • Wavelength Range
    210 to 355 nm
  • Active Area
    0.1 mm2
  • Supply Voltage
    2.7 to 5.25 V
  • Rise Time
    30 µs
  • Bandwidth
    10 kHz
  • Voltage Responsivity
    1.8 mV/nW
  • Module
    No
  • Output Voltage
    Up to 5 V
  • Package
    TO-5
  • Rise Fall Time
    30 µs (Rise)
  • RoHS
    Yes
  • Short Circuit Current
    ± 50 mA
  • Supply Current
    750 to 1100 µA
  • Note
    Saturation voltage: 4.8 to 4.95 V

Environmental Conditions

  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Optical measurements in UV-range, control of sterilization lamps, flame control
