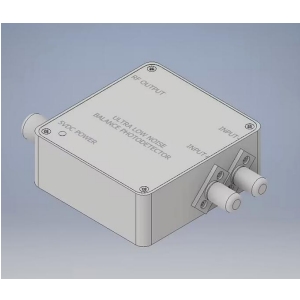

UBD-400M-A

Photodetector by LD-PD Inc
104 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The UBD-400M-A from LD-PD Inc is a Photodetector with Wavelength Range 800 to 1700 nm, Supply Voltage 5 V, Bandwidth 400 MHz, Responsivity/Photosensitivity 0.95 A/W. More details for UBD-400M-A can be seen below.

Product Specifications

Product Details

  • Part Number
    UBD-400M-A
  • Manufacturer
    LD-PD Inc
  • Description
    800 to 1700 nm Near-IR, Infrared Module with Connector InGaAs Photodetector

General Parameters

  • Photodetector Material
    Indium Gallium Arsenide (InGaAs)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Near-IR, Infrared
  • Wavelength Range
    800 to 1700 nm
  • Photodetector Type
    PIN
  • Supply Voltage
    5 V
  • Bandwidth
    400 MHz
  • Impedance
    50 Ohms
  • Input Power
    210 µW
  • Noise equivalent power(NEP)
    2.9 pW/vHz
  • Package
    Module with Connector
  • Supply Current
    0.5 A
  • Responsivity/Photosensitivity
    0.95 A/W
  • Note
    Output Coupling Mode: DC/AC, RF Output Connector: SMA

Physical Properties

  • Dimensions
    65 x 70 x 25 mm

Applications

  • Application
    Optical Fiber Sensing, Doppler Wind Lidar, Oct, Laser Ranging, Spectrometry

Connections & Interface

  • Fiber optic connector
    FC/APC
  • RF Connector
    SMA
