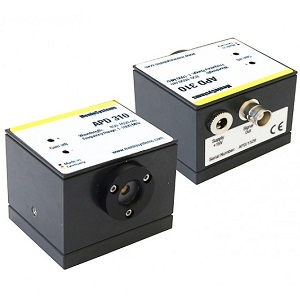

APD310

Photodetector by Menlo Systems
15 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Menlo Systems.

The APD310 from Menlo Systems is a Photodetector with Wavelength Range 850 to 1650 nm, Supply Voltage 12 to 15 V, Rise Time 500 ps, Bandwidth 5 to 1000 MHz, Active Area Diameter 0.03 mm. More details for APD310 can be seen below.

Product Specifications

Product Details

  • Part Number
    APD310
  • Manufacturer
    Menlo Systems
  • Description
    850 to 1650 nm Spectral Range Near-IR, Infrared Module with Connector Package Photodetector

General Parameters

  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Near-IR, Infrared
  • Wavelength Range
    850 to 1650 nm
  • Photodetector Type
    Avalanche
  • Supply Voltage
    12 to 15 V
  • Rise Time
    500 ps
  • Bandwidth
    5 to 1000 MHz
  • Active Area Diameter
    0.03 mm
  • Cut-Off Frequency
    1 to 1800 MHz
  • Noise equivalent power(NEP)
    2 pW/v Hz
  • Package
    Module with Connector
  • Rise Fall Time
    500 ps (Rise)
  • Supply Current
    200 mA
  • Note
    Dark State Noise Level: -80 dBm, Gain: 2.5 x 10-4 V/W

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C

Applications

  • Application
    Fast Laser Pulses, Ultra Low Light Level Signals, Beat Signal of Low Level Inputs

Connections & Interface

  • RF Connector
    BNC
