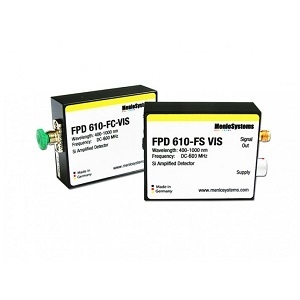

FPD610-FC-VIS

Photodetector by Menlo Systems
15 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Menlo Systems.

The FPD610-FC-VIS from Menlo Systems is a Photodetector with Wavelength Range 400 to 1000 nm, Supply Voltage 5 to -12 V, Rise Time 1 ns, Bandwidth DC to 500 MHz, Active Area Diameter 0.25 mm. More details for FPD610-FC-VIS can be seen below.

Product Specifications

Product Details

  • Part Number
    FPD610-FC-VIS
  • Manufacturer
    Menlo Systems
  • Description
    400 to 1000 nm VIS-IR Module with Connector Silicon Photodetector

General Parameters

  • Photodetector Material
    Silicon (Si)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Visible, Infrared
  • Wavelength Range
    400 to 1000 nm
  • Photodetector Type
    PIN
  • Supply Voltage
    5 to -12 V
  • Rise Time
    1 ns
  • Bandwidth
    DC to 500 MHz
  • Active Area Diameter
    0.25 mm
  • Cut-Off Frequency
    DC to 600 MHz
  • Noise equivalent power(NEP)
    11.9 pW/vHz
  • Package
    Module with Connector
  • Rise Fall Time
    1 ns (Rise)
  • Supply Current
    50 to 250 mA
  • Note
    Damage Threshold: 3 mW, Dark State Noise Level: -80 to -100 dBm, Gain: 2 x 10-6 V/W, Relative Humidity: 10 to 90% (Non-Condensing)

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 85 Degree C

Physical Properties

  • Dimensions
    60 x 50 x 20 mm2

Applications

  • Application
    Efficient Homodyne and Heterodyne Extraction of Optical Beat Signals at Frequencies Up to 250 Mhz, Detection of Low Light Level Signals, Characterization of Pulsed or Modulated Light Sources Features, Detection of Chopped Light Sources

Connections & Interface

  • RF Connector
    SMA - Female
