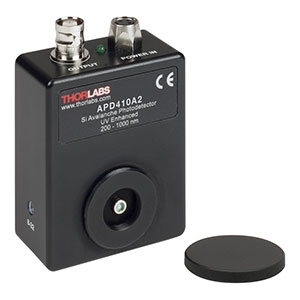

APD410A2

Photodetector by Thorlabs Inc
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The APD410A2 from Thorlabs Inc is a Photodetector with Wavelength Range 200 to 1000 nm, Supply Voltage 12 V, Bandwidth DC to 10 MHz, Active Area Diameter 0.2 mm, Responsivity/Photosensitivity 25 A/W. More details for APD410A2 can be seen below.

Product Specifications

Product Details

  • Part Number
    APD410A2
  • Manufacturer
    Thorlabs Inc
  • Description
    200 to 1000 nm UV-VIS-NIR Module with Connector Silicon Photodetector

General Parameters

  • Photodetector Material
    Silicon (Si)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Ultraviolet, Visible, Infrared
  • Wavelength Range
    200 to 1000 nm
  • Photodetector Type
    Avalanche
  • Supply Voltage
    12 V
  • Channels
    Single
  • Configuration
    Single
  • Bandwidth
    DC to 10 MHz
  • Active Area Diameter
    0.2 mm
  • Impedance
    50 Ohms
  • Input Power
    1 mW
  • Module
    Yes
  • Noise equivalent power(NEP)
    0.09 pW/vHz
  • Output Voltage
    2.0 to 4.1 V
  • Package
    Module with Connector
  • RoHS
    Yes
  • Responsivity/Photosensitivity
    25 A/W

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Weight
    0.1 kg
  • Dimensions
    50.8 x 63.5 x 27.4 mm (W x H x D)

Applications

  • Application
    Long Haul Receivers, Sonet/sdh Receivers

Connections & Interface

  • RF Connector
    BNC
