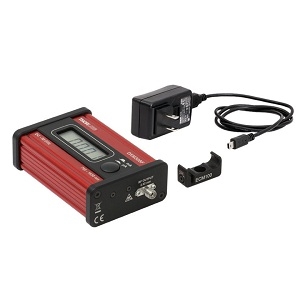

DXM12CF

Photodetector by Thorlabs Inc
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The DXM12CF from Thorlabs Inc is a Photodetector with Wavelength Range 700 to 870 nm, Supply Voltage 5 VDC, Rise Time 29 ps, Dark Current 50 nA, Responsivity/Photosensitivity 0.6 A/W. More details for DXM12CF can be seen below.

Product Specifications

Product Details

  • Part Number
    DXM12CF
  • Manufacturer
    Thorlabs Inc
  • Description
    700 to 870 nm Near-IR, Infrared Module with Connector GaAs Photodetector

General Parameters

  • Photodetector Material
    Gallium Arsenide (GaAs)
  • Operation Mode
    Photovoltaic
  • Package Type
    Module with Connector
  • Spectral Band
    Near-IR, Infrared
  • Wavelength Range
    700 to 870 nm
  • Supply Voltage
    5 VDC
  • Rise Time
    29 ps
  • Impedance
    50 Ohms
  • Input Power
    10 dBm (10 mW)
  • Cut-Off Frequency
    DC to 12 GHz
  • Noise equivalent power(NEP)
    30 pW/vHz
  • Output Voltage
    1 V
  • Package
    Module with Connector
  • Rise Fall Time
    29 ps (Rise)
  • Dark Current
    50 nA
  • Responsivity/Photosensitivity
    0.6 A/W
  • Note
    Mode: Single Mode, Conversion Gain: 15 V/W , Optical Return Loss: -30 dB, Peak Power: 75 mW, Fiber Type: SMF-28, Output Connector: Female 2.92 mm, Current Monitor Connector: Female SMA, Transimpedance Gain: 1 V/mA

Environmental Conditions

  • Operating Temperature
    10 to 40 °C
  • Storage Temperature
    0 to 50 °C

Physical Properties

  • Dimensions
    103 x 61.4 x 29.6 mm

Connections & Interface

  • Fiber optic connector
    FC/PC
  • RF Connector
    SMA, 2.92 mm
