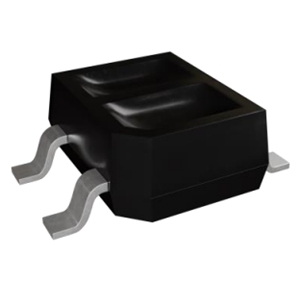

8TR3427000000002

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8TR3427000000002 from Edison Opto is a Photointerrupter with Rise Time 20 µs, Wavelength 940 nm, Power Dissipation 75 mW, Fall Time 20 µs, Collector Current 20 mA. More details for 8TR3427000000002 can be seen below.

Product Specifications

Product Details

  • Part Number
    8TR3427000000002
  • Manufacturer
    Edison Opto

Applications

  • Applications
    Camera, VCR, Floppy disk driver, Cassette type recorder, Various microcomputer control equipment

General Parameters

  • Type
    Reflective
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Emitter-Collector Breakdown Voltage
    5 V
  • Rise Time
    20 µs
  • Wavelength
    940 nm
  • Emitter Material
    AlGaAs
  • Power Dissipation
    75 mW
  • Package Type
    Surface Mount
  • Chip Material
    AlGaAs, Silicon
  • Collector-Emitter Breakdown Voltage(Vbce)
    30 V
  • Leakage Current
    1 µA
  • Fall Time
    20 µs
  • Light Current
    0.18 to 0.44 mA
  • Operating Current
    50 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Forward Voltage
    1.2 to 1.6 V

Environmental Conditions

  • Lead Soldering Temperature
    250 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Physical Properties

  • Dimension
    3.4 x 2.7 x 1.5 mm
