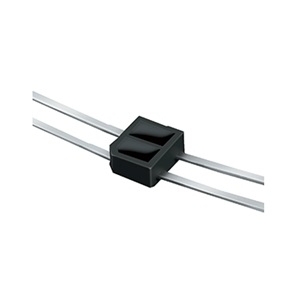

ITR8307/F43

Photointerrupter by EVERLIGHT Electronics
14 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EVERLIGHT Electronics.

The ITR8307/F43 from EVERLIGHT Electronics is a Photointerrupter with Rise Time 20 µs, Wavelength 940 nm, Power Dissipation 75 mW, Fall Time 20 µs, Collector Current 50 mA. More details for ITR8307/F43 can be seen below.

Product Specifications

Product Details

  • Part Number
    ITR8307/F43
  • Manufacturer
    EVERLIGHT Electronics

Applications

  • Applications
    Camera, VCR, Floppy disk driver, Cassette type recorder, Various microcomputer control equipment

General Parameters

  • Type
    Reflective
  • Rise Time
    20 µs
  • Wavelength
    940 nm
  • Emitter Material
    GaAs
  • Power Dissipation
    75 mW
  • Package Type
    DIL / DIP / Through Hole
  • Chip Material
    GaAs, Silicon
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Leakage Current
    1 nA
  • Fall Time
    20 µs
  • On State Collector Current
    0.1 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    50 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.6 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Physical Properties

  • Dimension
    3.4 x 2.7 x 1.5 mm
