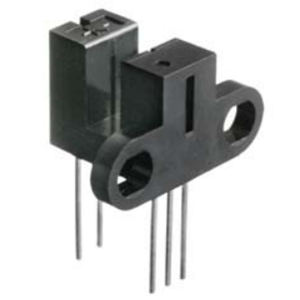

LG214D

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG214D from KODENSHI is a Photointerrupter with Rise Time 0.6 µs, Wavelength 940 nm, Power Dissipation 100 mW, Gap Width 3.6 mm, Fall Time 10 µs. More details for LG214D can be seen below.

Product Specifications

Product Details

  • Part Number
    LG214D
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Rise Time
    0.6 µs
  • Wavelength
    940 nm
  • Power Dissipation
    100 mW
  • Package Type
    PWB direct mount, Screw mount
  • Gap Width
    3.6 mm
  • Forward Current
    60 mA
  • H - L Propagation Time
    3 µs
  • Hysteresis
    0.5 to 0.95
  • L - H Propagation Time
    1 µs
  • Fall Time
    10 µs
  • Output Voltage
    0.3 to 4.5 V
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Supply Current
    3 to 10 mA
  • Supply Voltage
    4.5 to 16.5 V
  • Threshold Input Current
    5 to 12 mA
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
