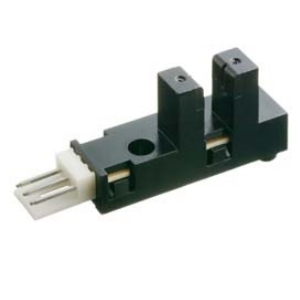

LG217D

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG217D from KODENSHI is a Photointerrupter with Power Dissipation 200 mW, Gap Width 5 mm, Collector-Dark Current 1 to 100 nA. More details for LG217D can be seen below.

Product Specifications

Product Details

  • Part Number
    LG217D
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Power Dissipation
    200 mW
  • Package Type
    Screw Mount
  • Gap Width
    5 mm
  • Leakage Current
    0.5 to 10 µA
  • Light Current
    0.4 to 10 mA
  • Output Voltage
    0.2 to 4.5 V
  • Supply Current
    20 to 35 mA
  • Supply Voltage
    4.5 to 5.5 V
  • Collector-Dark Current
    1 to 100 nA

Environmental Conditions

  • Operating Temperature
    -20 to 75 Degree C
  • Storage Temperature
    -30 to 85 Degree C
