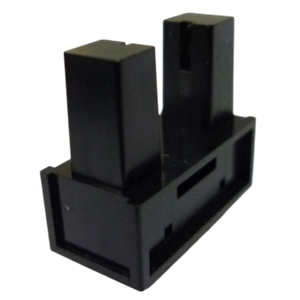

LG2A23ND2

Photointerrupter by KODENSHI

Note: Your Quotation Request will be directed to KODENSHI.

The LG2A23ND2 from KODENSHI is a Photointerrupter with Power Dissipation 200 mW, Gap Width 7 mm, Fall Time 10 µs. More details for LG2A23ND2 can be seen below.

Product Specifications

Product Details

  • Part Number
    LG2A23ND2
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Printer, Auto Stamper, Ticket vending machine, Copier

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Emitter Material
    GaAs
  • Power Dissipation
    200 mW
  • Package Type
    Snap-In, Screw Mount
  • Gap Width
    7 mm
  • Fall Time
    10 µs
  • Output Voltage
    0.2 to 4.5 V
  • Supply Current
    17 to 25 mA
  • Supply Voltage
    4.5 to 5.5 V

Environmental Conditions

  • Operating Temperature
    -20 to 75 Degree C
  • Storage Temperature
    -30 to 80 Degree C
