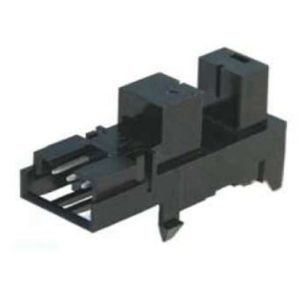

LG2A24RL1

Photointerrupter by KODENSHI

Note: Your Quotation Request will be directed to KODENSHI.

The LG2A24RL1 from KODENSHI is a Photointerrupter with Power Dissipation 100 mW, Gap Width 5 mm. More details for LG2A24RL1 can be seen below.

Product Specifications

Product Details

  • Part Number
    LG2A24RL1
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Copier, Printer

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Emitter Material
    GaAs
  • Power Dissipation
    100 mW
  • Package Type
    Snap-in mount
  • Gap Width
    5 mm
  • Output Voltage
    0.2 to 4.95 V
  • Supply Current
    17 mA
  • Supply Voltage
    2.7 to 5.5 V

Environmental Conditions

  • Operating Temperature
    -20 to 95 Degree C
  • Storage Temperature
    -30 to100 Degree C

Technical Documents

Click to view more product details on manufacturer's website
