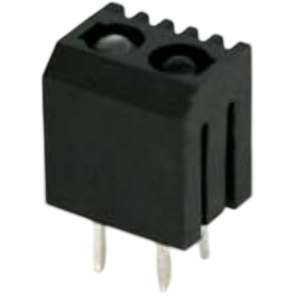

SG128IR

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The SG128IR from KODENSHI is a Photointerrupter with Rise Time 10 µs, Wavelength 940 nm, Power Dissipation 75 mW, Fall Time 10 µs, Collector Current 20 mA. More details for SG128IR can be seen below.

Product Specifications

Product Details

  • Part Number
    SG128IR
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Printers, plotters, CD changers, Ticket vendor, Auto stampers

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Rise Time
    10 µs
  • Wavelength
    940 nm
  • Power Dissipation
    75 mW
  • Package Type
    PWB direct mount
  • Detection Distance
    8 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Fall Time
    10 µs
  • Light Current
    0.08 to 0.8 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
