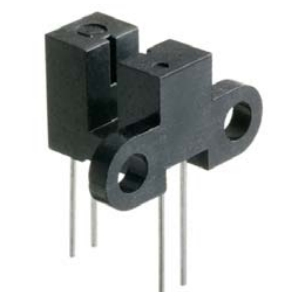

SG23FH

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The SG23FH from KODENSHI is a Photointerrupter with Rise Time 4 µs, Wavelength 940 nm, Power Dissipation 100 mW, Gap Width 3.2 mm, Fall Time 5 µs. More details for SG23FH can be seen below.

Product Specifications

Product Details

  • Part Number
    SG23FH
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Printer, Auto Stamper, Ticket vending machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Rise Time
    4 µs
  • Wavelength
    940 nm
  • Power Dissipation
    100 mW
  • Package Type
    PWB direct mount, Screw mount
  • Gap Width
    3.2 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    60 mA
  • L - H Propagation Time
    3 µs
  • Leakage Current
    0.5 to 10 µA
  • Fall Time
    5 µs
  • Light Current
    0.3 to 10 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    40 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
