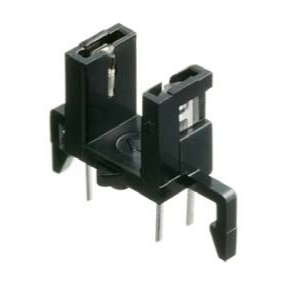

SG264

Photointerrupter by KODENSHI

Note: Your Quotation Request will be directed to KODENSHI.

The SG264 from KODENSHI is a Photointerrupter with Rise Time 50 µs, Wavelength 940 nm, Power Dissipation 75 mW, Gap Width 4.2 mm, Fall Time 50 µs. More details for SG264 can be seen below.

Product Specifications

Product Details

  • Part Number
    SG264
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Printer

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Rise Time
    50 µs
  • Wavelength
    940 nm
  • Power Dissipation
    75 mW
  • Package Type
    PWB direct mount, Snap-in mount
  • Gap Width
    4.2 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Leakage Current
    0.5 to 10 µA
  • Fall Time
    50 µs
  • Light Current
    0.2 to 5 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C
