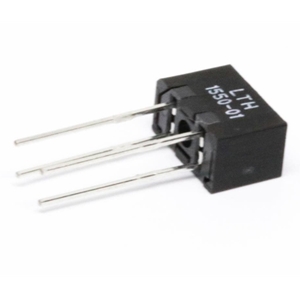

LTH-1550-01

Photointerrupter by LITE-ON
29 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LITE-ON.

The LTH-1550-01 from LITE-ON is a Photointerrupter with Power Dissipation 90 mW (Input), 100 mW (Output), Collector Current 20 mA, Collector-Dark Current 100 nA, Collector-Emitter Voltage(Vce) 30 V, Forward Voltage 1.2 to 1.6 V. More details for LTH-1550-01 can be seen below.

Product Specifications

Product Details

  • Part Number
    LTH-1550-01
  • Manufacturer
    LITE-ON

General Parameters

  • Type
    Reflective
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Power Dissipation
    90 mW (Input), 100 mW (Output)
  • Package Type
    Direct Mount, DIL / DIP / Through Hole
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    60 mA
  • On State Collector Current
    200 to 1600 µA
  • Reverse Current
    100 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.6 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
