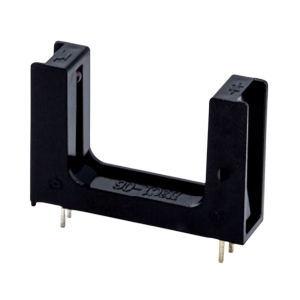

DPI010400

Photointerrupter by OncQue
9 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OncQue.

The DPI010400 from OncQue is a Photointerrupter with Rise Time 20 µs, Wavelength 940 nm, Power Dissipation 75 mW (Input), 100 mW (Output), Gap Width 15 mm, Fall Time 20 µs. More details for DPI010400 can be seen below.

Product Specifications

Product Details

  • Part Number
    DPI010400
  • Manufacturer
    OncQue

Applications

  • Applications
    Automatic control system, Automation Equipment, Scanner, Printer, Fax machine, Copy machine, Printing machine, PC mouse, Security system, Counter, Optical encoders, position detecting, paper detecting, signal detecting

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    20 µs
  • Wavelength
    940 nm
  • Power Dissipation
    75 mW (Input), 100 mW (Output)
  • Package Type
    DIL / DIP / Through Hole
  • Gap Width
    15 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Fall Time
    20 µs
  • Light Current
    1 to 10 mA
  • Reverse Current
    100 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Threshold Input Current
    10 mA
  • Collector Current
    40 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.5 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -45 to 85 Degree C
