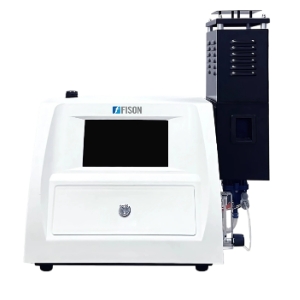

FM-FPM-A106

Photometer by Fison Instruments
7 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Fison Instruments.

Product Specifications

View similar products

Product Details

  • Part Number
    FM-FPM-A106
  • Manufacturer
    Fison Instruments
  • Description
    Flame Photometer Benchtop from K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Li: 0.1 to 30 ppm, Ca: 0.1 to 1000 ppm, Ba: 0.1 to 300 ppm

Applications

  • Application Industry
    Research & Education, Medical, Agricultural, Food & Beverages
  • Applications
    Clinical Laboratories, Agriculture, Food Industry, Environmental Monitoring, Pharmaceuticals, & Research

General Parameters

  • Photometer Type
    Flame Photometer
  • Light Source
    Flame Emission
  • Measurement Unit
    ppm
  • Configuration
    Benchtop
  • Measurement Element
    Potassium (K), Sodium (Na), Lithium (Li), Calcium (Ca), Barium (Ba)
  • Display
    7-Inches touchscreen LCD
  • Fuel supply/Combustion Gas
    LPG
  • Limit of Detection (LOD)
    K: <0.156 ppm, Na: <0.184 ppm, Li: <0.1035 ppm, Ca: <2 ppm, Ba: <6.028 ppm
  • Linearity Error
    K:<0.195 ppm, Na:<0.69 ppm, Li:<0.1449 ppm, Ca:<3 ppm, Ba:<9.402 ppm
  • Number of Channels
    5
  • Photodetector Type
    Silicon Photodiode
  • Power Consumption
    30 W
  • Power Supply
    220 VAC ±10%, 50 Hz± 1Hz
  • Printer
    Optional built-in thermal printer
  • Range
    K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Li: 0.1 to 30 ppm, Ca: 0.1 to 1000 ppm, Ba: 0.1 to 300 ppm
  • Repeatability
    0.02
  • Response Time
    8 s
  • Sample Uptake
    <3 L/min
  • Stability
    < 3% (15s),<15% (6min)

Physical Properties

  • Dimensions
    570 x 530 x 400 mm ( Lx B x H)
  • Weight
    18 kg

Connections & Interface

  • Interface
    USB
