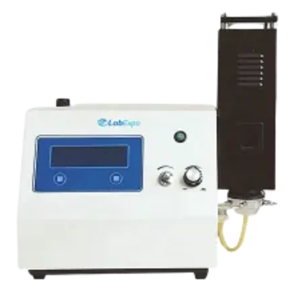

34-FPM104

Photometer by Lab Expo
12 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Lab Expo.

Product Specifications

View similar products

Product Details

  • Part Number
    34-FPM104
  • Manufacturer
    Lab Expo
  • Description
    Flame Photometer Benchtop from ( 50 ± 1 ) Hz

Applications

  • Application Industry
    Research & Education, Agricultural
  • Applications
    Glass, Ceramics, Fertilizers & Soil, Pharmaceuticals, & Scientific Research

General Parameters

  • Photometer Type
    Flame Photometer
  • Light Source
    Flame Emission
  • Measurement Unit
    ppm
  • Configuration
    Benchtop
  • Measurement Element
    Potassium (K), Sodium (Na), Barium (Ba)
  • Aspiration Rate
    2 to 6 mL / min
  • Frequency
    ( 50 ± 1 ) Hz
  • Linearity
    K: 0.195 ppm (0.39 to 3.12 ppm) Na: 0.69 ppm (1.15 to 9.2 ppm) Li: 9 ppm
  • Photodetector Type
    Silicon Photodiode
  • Power Supply
    220 ± 22 V
  • Range
    K: 0 to 100 ppm, Na: 0 to 160 ppm, Li: 0 to 3000 ppm
  • Repeatability
    0.01
  • Response Time
    <8 s
  • Sensitivity
    K: 0.156 ppm, Na: 0.184 ppm, Li: 6 ppm

Physical Properties

  • Dimensions
    770 x 560 x 390 mm
  • Weight
    22 kg

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
  • Relative Humidity
    <85%
