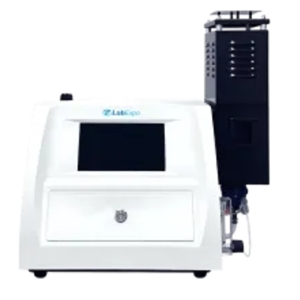

LE-FPM202

Photometer by Lab Expo
12 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Lab Expo.

Product Specifications

View similar products

Product Details

  • Part Number
    LE-FPM202
  • Manufacturer
    Lab Expo
  • Description
    Flame Photometer Benchtop from 50Hz±1Hz

Applications

  • Application Industry
    Research & Education, Medical, Agricultural, Food & Beverages, Chemical Industry
  • Applications
    Cement, Glass, Ceramics, Refractory Materials, Construction Materials, Fertilizers, Soil, Mining Products, Petroleum, Metallurgy, Chemicals, Pharmaceuticals, Beverages, Food, Municipal Solid Waste, & Various Laboratory Samples In Scientific Research

General Parameters

  • Photometer Type
    Flame Photometer
  • Light Source
    Flame Emission
  • Measurement Unit
    ppm
  • Configuration
    Benchtop
  • Measurement Element
    Potassium (K), Sodium (Na), Lithium (Li), Calcium (Ca)
  • Fuel supply/Combustion Gas
    LPG
  • Frequency
    50Hz±1Hz
  • Limit of Detection (LOD)
    K: <0.156 ppm, Na: <0.184 ppm, Li: <0.1035 ppm, Ca: <2 ppm
  • Linearity Error
    K:<0.195 ppm, Na:<0.69 ppm, Li:<0.1449 ppm, Ca:<3 ppm
  • Number of Channels
    4
  • Photodetector Type
    Silicon Photodiode
  • Power Consumption
    250 W
  • Power Supply
    220 VAC±22V
  • Printer
    Build-in Thermal Printer (Optional)
  • Range
    K: 0.15 to 100 ppm, Na: 0.18 to 100 ppm, Li: 0.1 to 30 ppm, Ca: 0.1 to 1000 ppm
  • Repeatability
    0.03
  • Response Time
    <8 s
  • Sample Uptake
    <3 ml/min
  • Stability
    <3% drift (15S),<15% drift (6S)

Physical Properties

  • Dimensions
    570 x 530 x 400 mm
  • Weight
    18 kg

Connections & Interface

  • Interface
    USB
Click to view more product details on manufacturer's website
