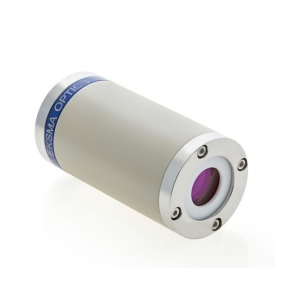

PCB6.3D-C-1030

Pockels Cell by EKSMA Optics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSMA Optics.

The PCB6.3D-C-1030 from EKSMA Optics is a Pockels Cell with Clear Aperture 5.8 mm, Wavelength Range 1030 nm, Quarter Wave Voltage <3.75 kV, Capacitance <6 pF, Pulse Width 10 ns. More details for PCB6.3D-C-1030 can be seen below.

Product Specifications

Product Details

  • Part Number
    PCB6.3D-C-1030
  • Manufacturer
    EKSMA Optics
  • Description
    1030 nm, <6 pF Beta Barium Borate Pockel Cell

Applications

  • Application
    Yb Host Femtosecond Lasers, Pulse Picking

General Parameters

  • Clear Aperture
    5.8 mm
  • Cell Cavity Material
    Ytterbium-Doped
  • Wavelength Range
    1030 nm
  • Quarter Wave Voltage
    <3.75 kV
  • Capacitance
    <6 pF
  • Contrast Ratio
    >1:1000
  • Crystal Material
    Beta Barium Borate (BBO)
  • Pulse Width
    10 ns
  • Damage Threshold
    >0.5 GW/cm2
  • Transmission
    >98%
  • Dimension
    35 x 68 mm (Dia x L)
  • Technology
    Q-Switched Laser
  • Clear Aperture display
    5.8 mm
