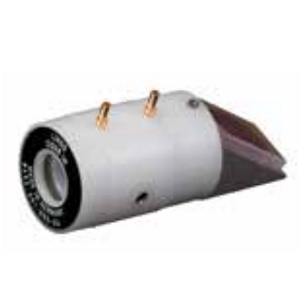

The CIQS 8 SG HD WP | 84503071023 from Excelitas Technologies is a Potassium Dihydrogen Phosphate (KD*P) Pockels Cell that operates at a wavelength of 1064 nm. It has an optical transmission of 95% and a clear aperture of diameter 7.5 mm. This pockels cell has a quarter wave DC voltage of 3.2 kV, capacitance of 4 pF, and crystal deuteration of 98%. It has an extinction ratio greater than 500:1 and a laser-induced damage threshold of 1.5 GW/cm2 (at 1064 nm, 12 ns, 1 Hz). This pockels cell is available in immersion (IM) or SolGel (SG) version and measures 51.7 mm x 24 mm x 19 mm.
