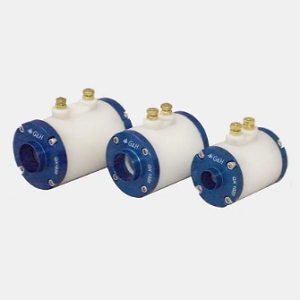

QX 2035

Pockels Cell by G&H
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to G&H.

The QX 2035 from G&H is a Pockels Cell with Repetition Rate 3 kHz, Wavelength Range 300 to 1100 nm, Quarter Wave Voltage 3.5 kV, Capacitance 13 pF, Pulse Width 10 ns. More details for QX 2035 can be seen below.

Product Specifications

Product Details

  • Part Number
    QX 2035
  • Manufacturer
    G&H
  • Description
    300 to 1100 nm, 13 pF Potassium Dihydrogen Phosphate Pockel Cell

Applications

  • Application
    Q-Switching, Pulse Picking

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
  • Relative Humidity
    <85% (Operating)
  • Storage Temperature
    -50 to 85 Degree C

General Parameters

  • Repetition Rate
    3 kHz
  • Wavelength Range
    300 to 1100 nm
  • Quarter Wave Voltage
    3.5 kV
  • Capacitance
    13 pF
  • Contrast Ratio
    >5000:1 (ICR), >2500:1 (VCR)
  • Crystal Material
    Potassium Dihydrogen Phosphate (KD*P)
  • Pulse Width
    10 ns
  • Damage Threshold
    >10 J/cm2
  • Transmission
    >99%
  • Dimension
    73.7 x 34.9 mm (L x Dia)
  • Duty Cycle
    <5%
  • Crystal Diameter
    19.5 mm (Hard Diameter)
  • Transmitted Wavefront Distortion
    <λ/10
  • Insertion Loss
    <1%
  • Rise Fall Time
    1.5 ns (rise)
  • Technology
    Q-Switched Laser
