NSP-D-08

Request Quote

Note: Your Quotation Request will be directed to Jinan Nanosecond Optoelectronics Technology.

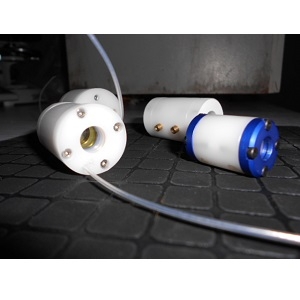

The NSP-D-08 from Jinan Nanosecond Optoelectronics Technology is a Pockels Cell with Clear Aperture 7.5 mm, Wavelength Range 250 to 1300 nm, Quarter Wave Voltage 3200 to 3800 V, Capacitance 3 pF, Pulse Width 10 ns. More details for NSP-D-08 can be seen below.

Product Specifications

Product Details

  • Part Number
    NSP-D-08
  • Manufacturer
    Jinan Nanosecond Optoelectronics Technology
  • Description
    250 to 1300 nm, 3 pF Potassium Dihydrogen Phosphate Pockel Cell

Applications

  • Application
    Q-Switching, Pulse Picking

Environmental Conditions

  • Operating Temperature
    -40 to 60 Degree C

General Parameters

  • Clear Aperture
    7.5 mm
  • Wavelength Range
    250 to 1300 nm
  • Quarter Wave Voltage
    3200 to 3800 V
  • Capacitance
    3 pF
  • Contrast Ratio
    3000:1
  • Crystal Material
    Potassium Dihydrogen Phosphate (KD*P), Deuterated Potassium Dihydrogen Phosphate (DKDP)
  • Pulse Width
    10 ns
  • Damage Threshold
    9 J/cm2
  • Dimension
    Cell size: 20 x 30 mm
  • Crystal Diameter
    8 mm
  • Insertion Loss
    <1.5%
  • Technology
    Q-Switched Laser
  • Deuteration Level
    >98%
  • Clear Aperture display
    7.5 mm
