R-Q3310X

Request Quote

Note: Your Quotation Request will be directed to Shandong Laserton Optic Co., Ltd..

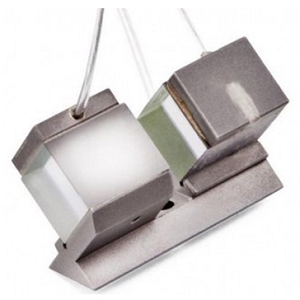

The R-Q3310X from Shandong Laserton Optic Co., Ltd. is a Pockels Cell with Half Wave Voltage 1200 V, Repetition Rate 1 MHz, Wavelength Range 500 to 3000 nm, Pulse Width 10 ns. More details for R-Q3310X can be seen below.

Product Specifications

Product Details

  • Part Number
    R-Q3310X
  • Manufacturer
    Shandong Laserton Optic Co., Ltd.
  • Description
    500 to 3000 nm Wavelength Rubidium Titanyle Phosphate Pockel Cell

Applications

  • Application
    Commonly Applied in Q switches & Pulse Pickers, Used as E-O Modulator, Used as Attenuators & Deflectors, Pulse Picking

Environmental Conditions

  • Operating Temperature
    -40 to 70 Degree C

General Parameters

  • Half Wave Voltage
    1200 V
  • Repetition Rate
    1 MHz
  • Wavelength Range
    500 to 3000 nm
  • Crystal Material
    Rubidium Titanyle Phosphate (RTP)
  • Pulse Width
    10 ns
  • Damage Threshold
    600 MW/cm2
  • Transmission
    >98.5%
  • Dimension
    3 x 3 x (10 + 10) mm
  • Extinction Ratio
    20 to 30 dB
  • Technology
    Q-Switched Laser
  • Windows AR Coating
    R<0.1%
