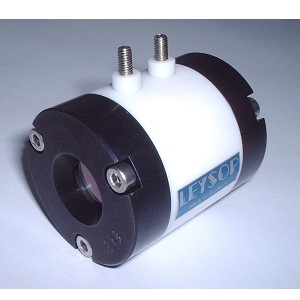

BBO Pockels cell

Pockels Cell by Leysop
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Leysop.

The BBO Pockels cell from Leysop is a Pockels Cell with Clear Aperture 2 to 8 mm, Half Wave Voltage 7 kV, Wavelength Range 220 to 2000 nm, Capacitance 5 to 10 pF. More details for BBO Pockels cell can be seen below.

Product Specifications

Product Details

  • Part Number
    BBO Pockels cell
  • Manufacturer
    Leysop
  • Description
    220 to 2000 nm, 5 to 10 pF Beta Barium Borate Pockel Cell

Applications

  • Application
    Q-switching

General Parameters

  • Clear Aperture
    2 to 8 mm
  • Half Wave Voltage
    7 kV
  • Wavelength Range
    220 to 2000 nm
  • Capacitance
    5 to 10 pF
  • Contrast Ratio
    Up to 30 dB
  • Crystal Material
    Beta Barium Borate (BBO)
  • Damage Threshold
    >1 GW/cm2
  • Transmission
    >98.5%
  • Dimension
    3 x 3 x 20 mm
  • Extinction Ratio
    >1000:1
  • Rise Fall Time
    10 ns
  • Technology
    Q-Switched Laser
  • Clear Aperture display
    2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm
