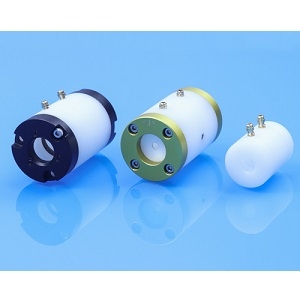

The 2031-014 from Hangzhou Shalom Electro-optics Technology Co., Ltd. is a Pockels Cell with Clear Aperture 12 mm, Wavelength Range 755 nm. More details for 2031-014 can be seen below.

Product Specifications

Product Details

  • Part Number
    2031-014
  • Manufacturer
    Hangzhou Shalom Electro-optics Technology Co., Ltd.
  • Description
    755 nm Wavelength Deuterated Potassium Dihydrogen Phosphate Pockel Cell

Applications

  • Application
    OEM laser systems, Medical/cosmetic lasers, Versatile R&D laser platforms, Military & aerospace laser systems, Q-switching

General Parameters

  • Clear Aperture
    12 mm
  • Wavelength Range
    755 nm
  • Crystal Material
    Deuterated Potassium Dihydrogen Phosphate (DKDP)
  • Damage Threshold
    >850 MW/cm2
  • Extinction Ratio
    >2000:1
  • Insertion Loss
    <3%
  • Technology
    Q-Switched Laser
  • Deuteration Level
    >98%
  • Clear Aperture display
    12 mm
