2033-005

Request Quote

Note: Your Quotation Request will be directed to Hangzhou Shalom Electro-optics Technology Co., Ltd..

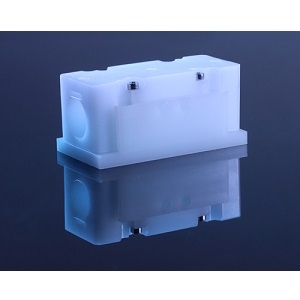

The 2033-005 from Hangzhou Shalom Electro-optics Technology Co., Ltd. is a Pockels Cell with Clear Aperture 3.6 mm, Wavelength Range 1064 nm. More details for 2033-005 can be seen below.

Product Specifications

Product Details

  • Part Number
    2033-005
  • Manufacturer
    Hangzhou Shalom Electro-optics Technology Co., Ltd.
  • Description
    1064 nm Wavelength Lithium Niobate, Magnesium Oxide-Doped Lithium Niobate Pockel Cell

General Parameters

  • Clear Aperture
    3.6 mm
  • Cell Cavity Material
    Er:YAG, Ho:YAG and Tm:YAG lasers
  • Wavelength Range
    1064 nm
  • Crystal Material
    Lithium Niobate (LiNbO3), Magnesium Oxide-Doped Lithium Niobate (MgO:LiNbO3)
  • Damage Threshold
    100 MW/cm2
  • Dimension Tolerance
    ±0.2 mm (Z-axis), ±0.1 mm (X-axis/Y-axis)
  • Extinction Ratio
    >100:1
  • Transmitted Wavefront Distortion
    <λ/6
  • Flatness
    λ/10
  • Parallelism
    <10 Inches
  • Clear Aperture display
    3.6 mm
  • Windows AR Coating
    R <0.15%
Click to view more product details on manufacturer's website
