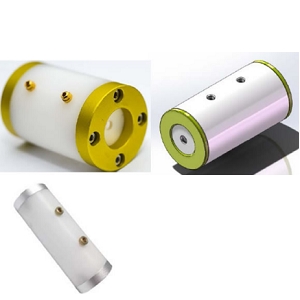

STC-BBO3.6

Pockels Cell by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STC-BBO3.6 from Sintec Optronics is a Pockels Cell with Clear Aperture 3.6 mm, Wavelength Range 410 to 3500 nm, Quarter Wave Voltage 4800 V, Capacitance >4 pF, Pulse Width 10 ns. More details for STC-BBO3.6 can be seen below.

Product Specifications

Product Details

  • Part Number
    STC-BBO3.6
  • Manufacturer
    Sintec Optronics
  • Description
    410 to 3500 nm, >4 pF Beta Barium Borate Pockel Cell

Applications

  • Application
    Q-Switching, Pulse Picking

General Parameters

  • Clear Aperture
    3.6 mm
  • Wavelength Range
    410 to 3500 nm
  • Quarter Wave Voltage
    4800 V
  • Capacitance
    >4 pF
  • Crystal Material
    Beta Barium Borate (BBO)
  • Pulse Width
    10 ns
  • Damage Threshold
    500 MW/cm2
  • Dimension
    25.4 x 39 mm
  • Extinction Ratio
    >1000:1
  • Insertion Loss
    <2%
  • Technology
    Q-Switched Laser
  • Clear Aperture display
    3.6 mm
