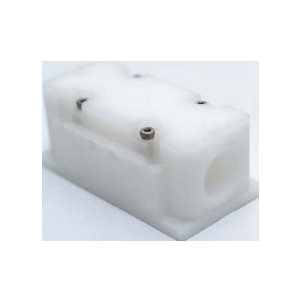

STC-LN2.5

Pockels Cell by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STC-LN2.5 from Sintec Optronics is a Pockels Cell with Clear Aperture 2.5 mm, Wavelength Range 1064 nm, Quarter Wave Voltage 885 V, Capacitance >5 pF, Pulse Width 10 ns. More details for STC-LN2.5 can be seen below.

Product Specifications

Product Details

  • Part Number
    STC-LN2.5
  • Manufacturer
    Sintec Optronics
  • Description
    1064 nm, >5 pF Lithium Niobate Pockel Cell

Applications

  • Application
    Q-Switching, Pulse Picking

General Parameters

  • Clear Aperture
    2.5 mm
  • Cell Cavity Material
    Er:YAG, Ho:YAG, Tm:YAG
  • Wavelength Range
    1064 nm
  • Quarter Wave Voltage
    885 V
  • Capacitance
    >5 pF
  • Crystal Material
    Lithium Niobate (LiNbO3)
  • Pulse Width
    10 ns
  • Damage Threshold
    300 MW/cm2
  • Dimension
    55 x 28 x 24 mm
  • Extinction Ratio
    >500:1
  • Transmitted Wavefront Distortion
    λ/8
  • Insertion Loss
    <3%
  • Technology
    Q-Switched Laser
  • Clear Aperture display
    2.5 mm
