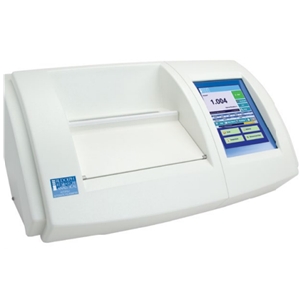

Autopol I

6 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Rudolph Research Analytical.

The Autopol I from Rudolph Research Analytical is a Polarimeter with Wavelength Range 589 nm, Optical Rotation Range ±89.9 Degree, Resolution(OR) 0.0001 Degree (Arc Optical Rotation), Accuracy 0.01 Degree. More details for Autopol I can be seen below.

Product Specifications

Product Details

  • Part Number
    Autopol I
  • Manufacturer
    Rudolph Research Analytical
  • Description
    Automatic Polarimeters from 400 to 700 nm (VIS) Benchtop

Applications

  • Application Industry
    Research and Education
  • Applications
    Education & Research

General Parameters

  • Type
    Automatic Polarimeters
  • Wavelength Range
    589 nm
  • Measurement Scales
    Optical Rotation, Concentration, International Sugar Scale (ISS), Specific rotation
  • Optical Rotation Range
    ±89.9 Degree
  • Calibration
    Automatic Calibration
  • Resolution(OR)
    0.0001 Degree (Arc Optical Rotation)
  • Data Storage
    32 GB Non-removable Compact Flash
  • Display
    8 Inch Color, 800 x 600 pixel resolution with 400 nits of brightness
  • Reproducibility
    0.01 Degree Arc Optical Rotation
  • Lifetime
    2000 hours
  • Sugar Scale Accuracy
    0.03 Degree Z
  • Light Source
    Tungsten-halogen 6V, 20W, avg. 2,000 hour life
  • Measurement Period
    5 measurements in less than 25 seconds
  • Package Type
    Benchtop
  • Power Supply
    100 to 240 VAC, 50/60 Hz
  • Accuracy
    0.01 Degree
  • Note
    Concentration: 0 to 99.9%

Connections & Interface

  • Interface
    USB, RS-232, Ethernet

Physical Properties

  • Dimensions
    617 x 323 x 432 mm (Operating), 787 x 711 x 660 mm (Shipping) (W x H x D)
  • Weight
    19.05 kg (Operating), 32.6 kg (Shipping)
