2-GT-2235-1

Polarizer by ALTECHNA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ALTECHNA.

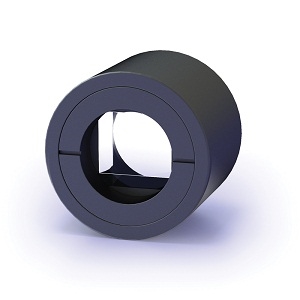

The 2-GT-2235-1 from ALTECHNA is a Polarizer with Wavelength Range 220 to 350 nm, Polarizer Diameter O D:- 25.4 mm(1 Inch), Polarizer Length 17 mm. More details for 2-GT-2235-1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    2-GT-2235-1
  • Manufacturer
    ALTECHNA
  • Description
    Glan Taylor Polarizers

General Parameters

  • Polarizer Type
    Glan Taylor Polarizers
  • Polarizer Shape
    Round
  • Wavelength Range
    220 to 350 nm
  • Polarizer Diameter
    O D:- 25.4 mm(1 Inch)
  • Polarizer Length
    17 mm
  • Beam Deviation
    3 arcmin
  • Beam Separation
    Separation Angle: 6 Degree
  • Clear Aperture
    8 mm
  • Polarization Extinction Ratio
    <5 x 10^-6
  • Substrate/Material
    a-BBO
  • Surface Quality
    20-10 scratch-dig
  • Transmitted Wavefront Distortion
    λ/4 @ 632.8 nm
