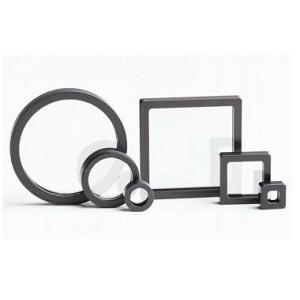

ABG06C

Polarizer by MOXTEK, Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MOXTEK, Inc.

The ABG06C from MOXTEK, Inc is a Polarizer with Wavelength Range 500 to 590 nm, Thickness 0.7mm, Operating Temperature 250 Degree C. More details for ABG06C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ABG06C
  • Manufacturer
    MOXTEK, Inc
  • Description
    High Transmission

Applications

  • Applications
    Projection displays, Polarizing modulators, Can be laminated with retarding films, Polarization sensitive cameras

General Parameters

  • Polarizer Type
    Wire Grid Polarizers
  • Polarizer Shape
    Round, Square
  • Wavelength Range
    500 to 590 nm
  • Dimension Tolerance
    ± 0.2 mm
  • Thickness
    0.7mm
  • Thickness Tolerance
    ± 0.07 mm
  • S-Polarization Transmission(%)
    0.3%
  • S-Polarization Reflection(%)
    0.1
  • P-Polariztion Transmission(%)
    0.915
  • P-Polariztion Reflection(%)
    0.06
  • Coating Material
    Visible
  • Angle of Incidence
    0±20 Degree
  • Substrate/Material
    Display Grade Glass
  • RoHs
    Yes
  • Note
    Edge Exclusion: 2 mm, TA Tolerance: ± 1 Degree, Thermal Expansion: 31.7 x 10-7/ Degree C

Temperature

  • Operating Temperature
    250 Degree C
