Note: Your Quotation Request will be directed to OPTOMAN.

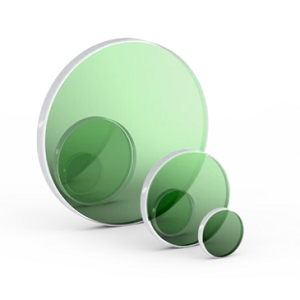

The PP-UVFS-25.4-6.35-TFP77 from OPTOMAN is a Thin-Film Polarizer that operates at a wavelength of 532 nm. It has a diameter of 25.4 mm and thickness of 6.35 mm. This UV-grade fused silica (UVFS) polarizer has a clear aperture above 80% and surface quality of 20/10 scratch-dig. It has a surface flatness of less than lambda/10 and total wavefront distortion of lambda/8 (at 633 nm). This polarizer has a parallelism of less than 30 arcsec and LIDT of greater than 6.79 J/cm2. It has an ion beam sputtering coating with an angle of incidence of 45 deg. This polarizer has a reflective surface with high reflectance above 99.8% (for s-polarized light) & high transmittance of over 97% (for p-polarized light) and an anti-reflective surface with a reflectance of less than 0.1% (for p-polarized light).
3 µm - 5 µm, Silicon Infrared Polarizer for Spectroscopy Applications
300 nm - 2700 nm, UV-Grade Fused Silica Polarizer
515/1030 nm UV-Grade Fused Silica Thin-Film Polarizer for Yb:YAG Lasers
