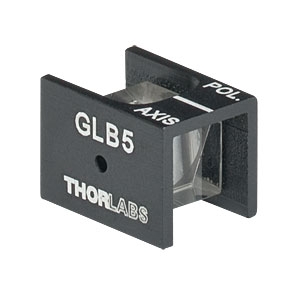

GLB5

Polarizer by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The GLB5 from Thorlabs Inc is a Polarizer with Wavelength Range 210 to 450 nm. More details for GLB5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GLB5
  • Manufacturer
    Thorlabs Inc
  • Description
    Glan-Laser alpha-BBO Polarizer, 5.0 mm CA, SLAR MgF2 (210 - 450 nm)

General Parameters

  • Polarizer Type
    Glan-Laser a-BBO Polarizers
  • Polarizer Shape
    Prism
  • Wavelength Range
    210 to 450 nm
  • Clear Aperture
    5 mm
  • Construction
    Prism
  • Polarization Extinction Ratio
    100000:1
  • Polarizer Dimension
    6.5 mm x 7.5 mm
  • Substrate/Material
    MgF2
  • Surface Quality
    20-10 scratch-dig, 40-20 scratch-dig
  • Transmitted Wavefront Distortion
    λ/8 Over Clear Aperture
  • RoHs
    Yes
  • Note
    Reflectance Ravg 1.5%
