GT10-A

Polarizer by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

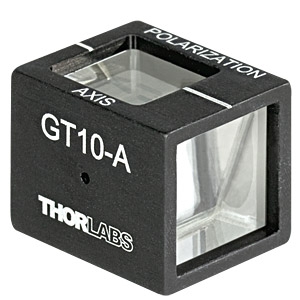

The GT10-A from Thorlabs Inc is a Polarizer with Wavelength Range 350 to 700 nm. More details for GT10-A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GT10-A
  • Manufacturer
    Thorlabs Inc
  • Description
    Glan-Taylor Polarizer, 10 mm Clear Aperture, Coating: 350* - 700 nm

General Parameters

  • Polarizer Type
    Glan-Taylor Polarizers
  • Polarizer Shape
    Prism
  • Wavelength Range
    350 to 700 nm
  • Coating Material
    AR Coating
  • Clear Aperture
    10 mm x 10 mm
  • Construction
    Prism
  • Polarization Extinction Ratio
    100000:1
  • Polarizer Dimension
    12.2 x 13.7 mm
  • Substrate/Material
    Calcite
  • Surface Quality
    20-10 scratch-dig, 80-50 scratch-dig
  • Transmitted Wavefront Distortion
    λ/4 Over Clear Aperture
  • RoHs
    Yes
  • Note
    Reflectance 1%Avg
