GCL-070211

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Kryptronic Technologies.

The GCL-070211 from Kryptronic Technologies is a Prism with Coating Wavelength 220 to 2500 nm. More details for GCL-070211 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GCL-070211
  • Manufacturer
    Kryptronic Technologies

General Parameters

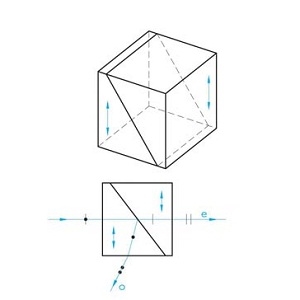

  • Prism Type
    Glan Taylor Prisms
  • Coating Wavelength
    220 to 2500 nm
  • Dimension
    10 x 10 x 11 mm
  • Angle Deviation
    ± 3 arc min
  • Surface Flatness
    λ/8
  • Clear Aperture
    8
  • Note
    Extinction Ratio:1x10^5, Transmission:0.85, Optical Damage Threshold CW:100W/cm², Optical Damage Threshold Pulse:200W/cm²
